Merge Roadbooks


To merge several RBD files, follow these steps:

  1. Open the RBD file that starts the stage using tool 10 in the image.
  2. Using key 11, select the RBD file that follows the previous one.

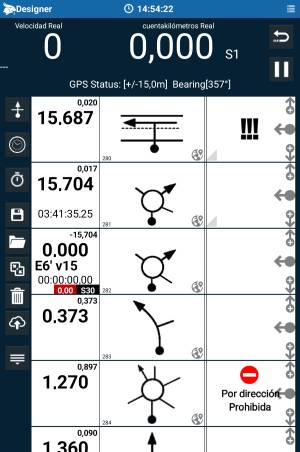

  3. The last waypoint in the first file must be the first waypoint in the second file.

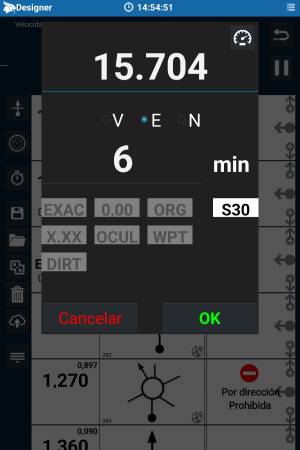

  4. If the new file is not to start at kilometre 0.00, amend the first waypoint of this second file by entering the correct kilometre point and deselecting the 0.00 option.

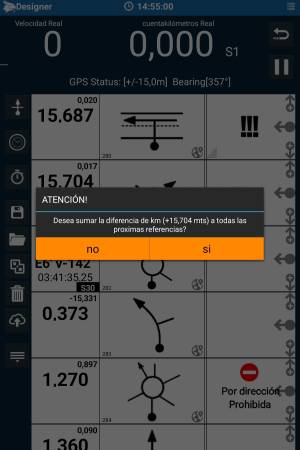

  5. At this point, the following message appears: ‘Do you wish to add the difference in km (+xx.xxx metres) to all subsequent references?’ Select ‘Yes’.

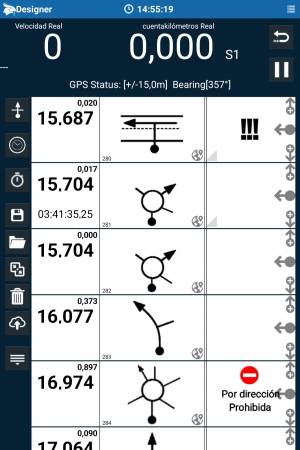

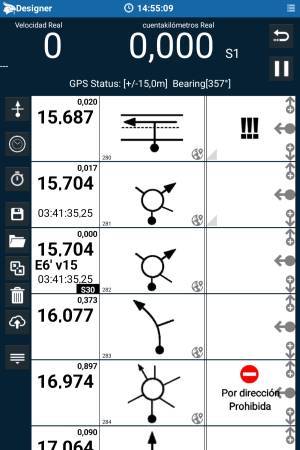

6. The distance is automatically added to the following waypoints.
7. In the first bullet point of the second file, hold down the left-hand box to delete the data for the new section, should this be an extension of a connecting section.

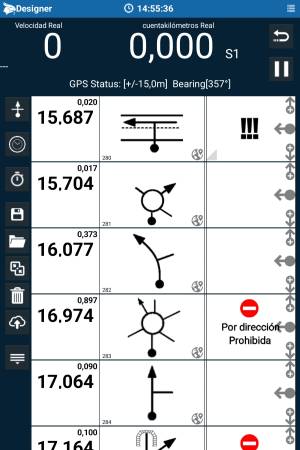

8. Once deleted, we delete the last bullet point from the first file to obtain the complete roadbook.



You can merge as many files as you like; just bear in mind that when you add a file, it is placed at the end of the Roadbook you are creating.
